Reduce crusher and shredder damage
Place the separator before sensitive machinery to capture damaging ferrous metals.
Self-cleaning tramp iron removal

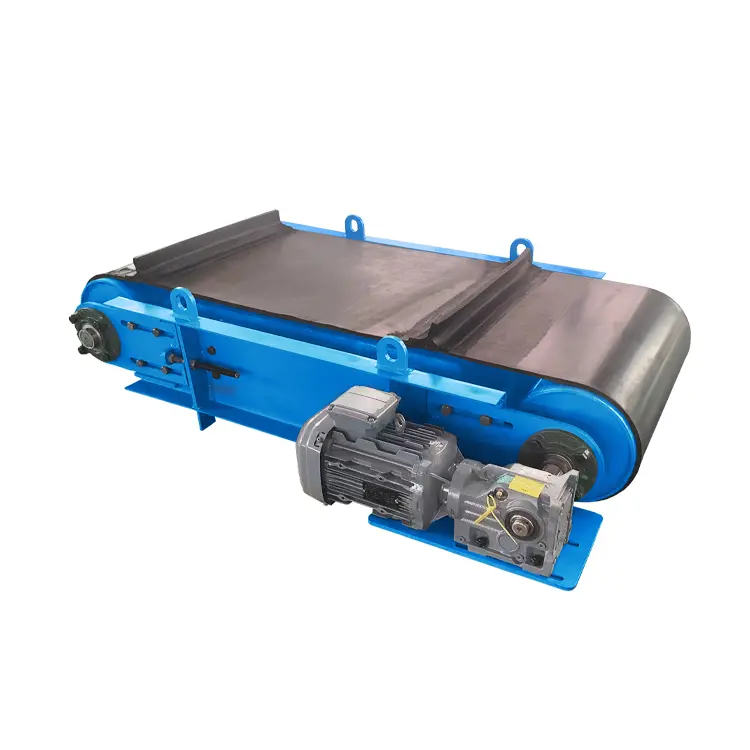

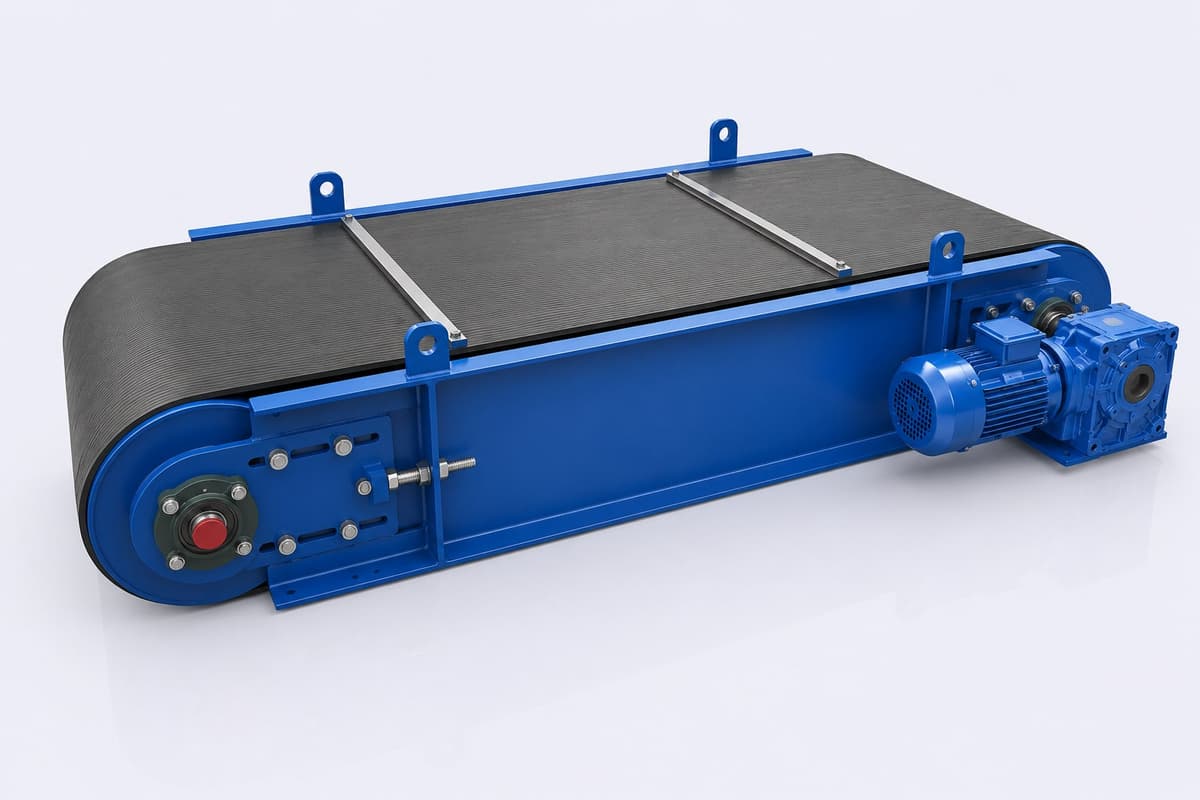

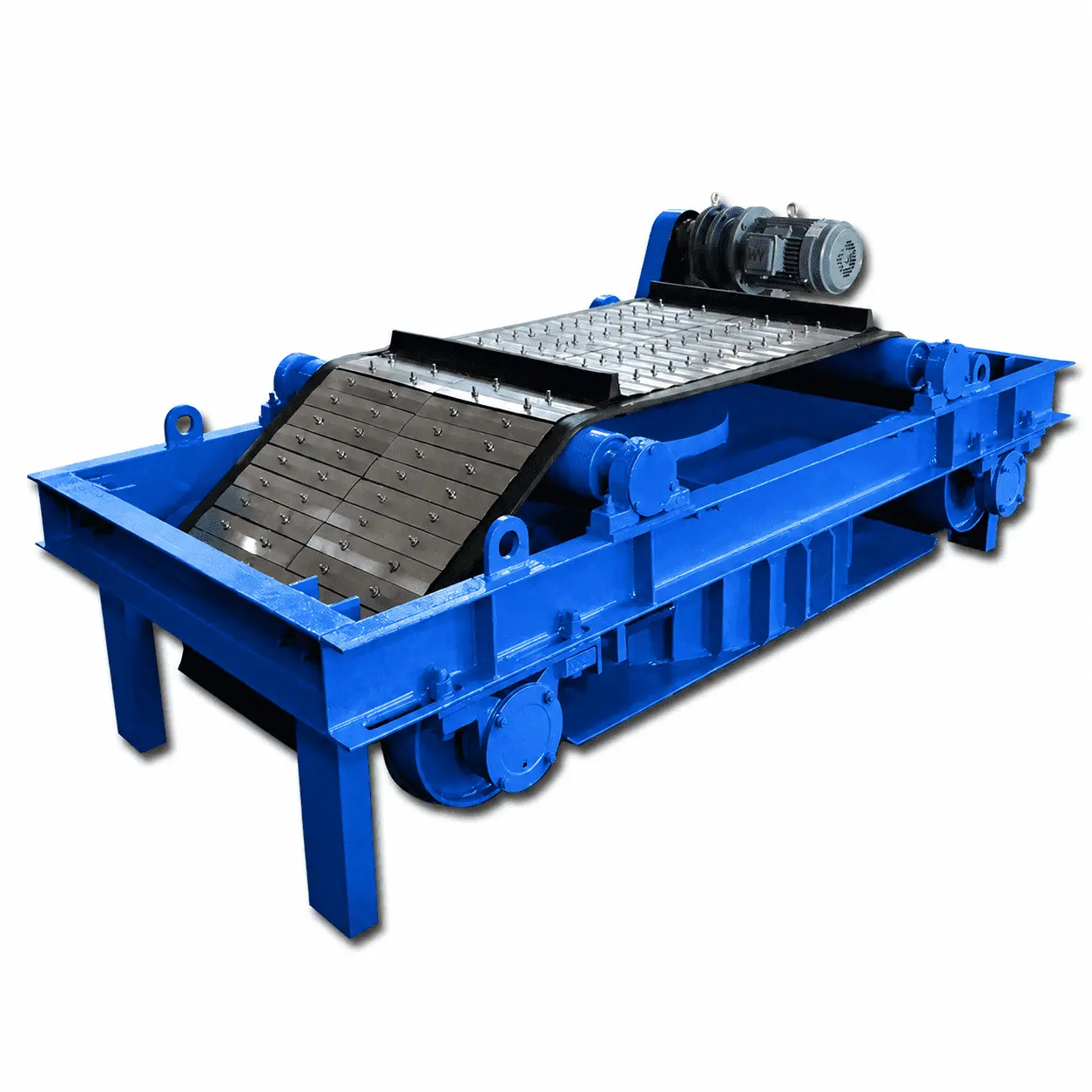

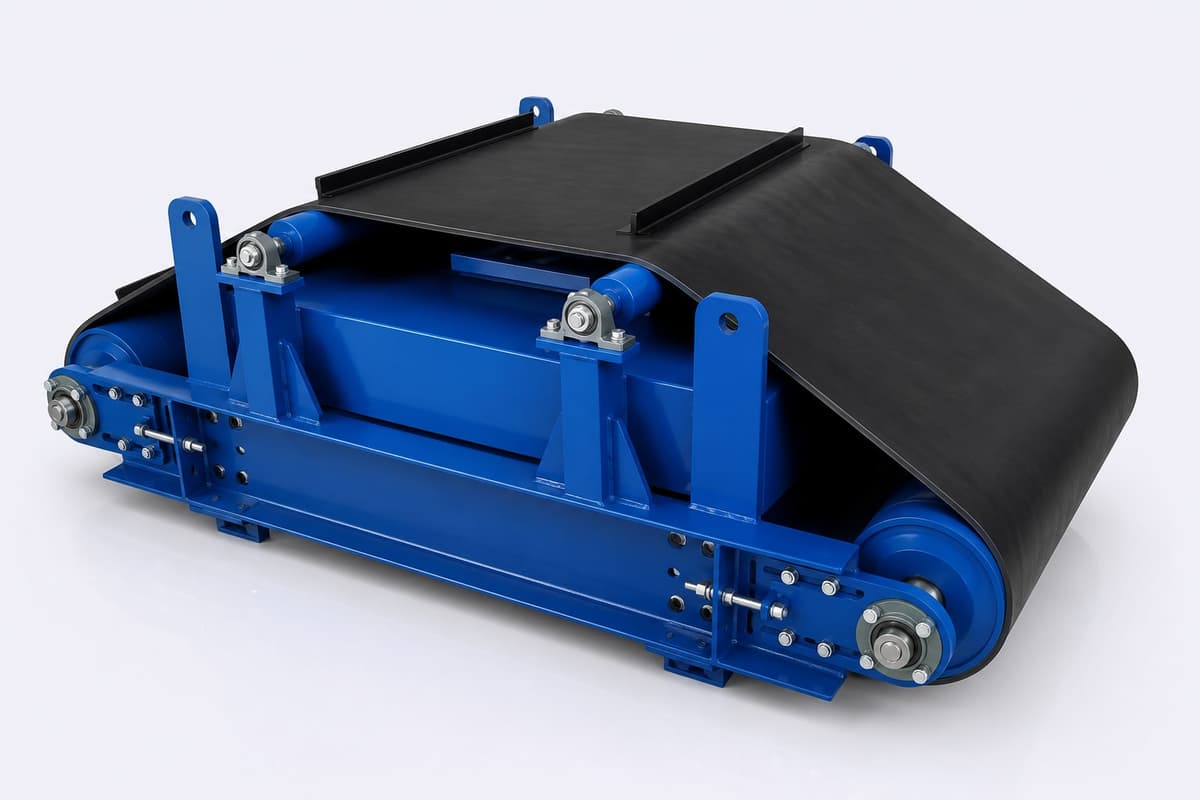

Permanent Overband Magnetic Separator for Conveyor Belt Systems
Designed to continuously remove ferrous metals from conveyed bulk materials while protecting crushers, shredders, screens and downstream processing equipment.
01No power required for magnetic field
02Automatic belt discharge for continuous operation
03Customized for belt width, height and material flow
04Built for recycling, mining, quarrying and cement plants
Engineering-focused product page
Help buyers judge fit before they contact sales.
This page is structured around real purchasing questions: what material is conveyed, how wide the belt is, how deep the burden is and whether the line needs manual or automatic cleaning.
Improve ferrous metal recovery

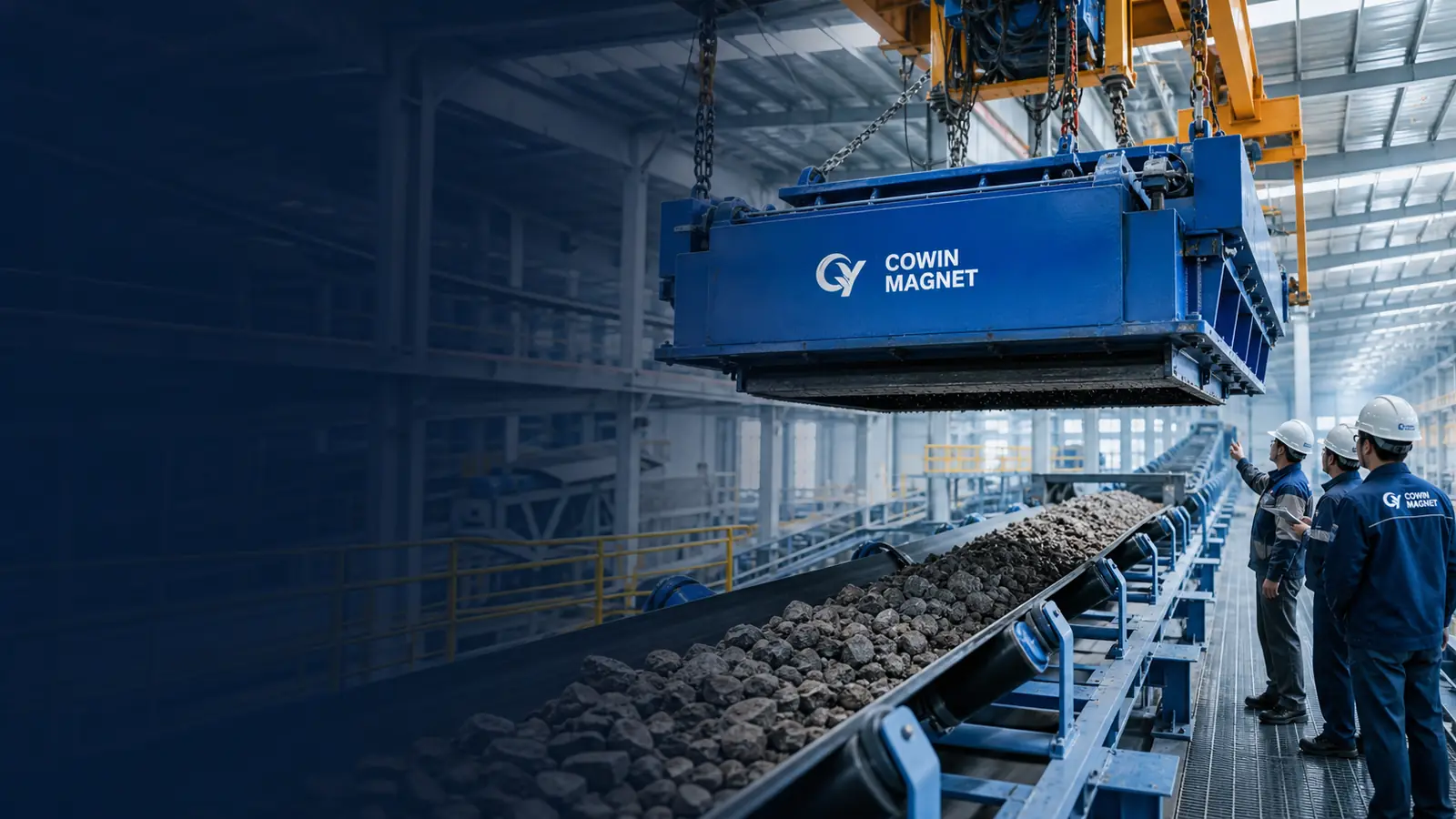

Use across-belt or in-line installation to remove tramp iron from material flow.
Lower daily cleaning labor
The self-unloading belt carries collected metal away from the magnetic field.
Selection data
Information needed for accurate model recommendation
This RFQ module collects the practical data needed before recommending a separator.
Technical specifications
Common Model Range
Specifications should be confirmed according to actual conveyor conditions and material burden.
ModelBelt WidthBelt SpeedSuspension HeightMotor Power
RCYD(C)-5500 mm4.5 m/s150 mm1.5 kW
RCYD(C)-6600 mm4.5 m/s175 mm1.5 kW
RCYD(C)-8800 mm4.5 m/s250 mm2.2 kW
RCYD(C)-101000 mm4.5 m/s300 mm3 kW
RCYD(C)-121200 mm4.5 m/s300 mm3 kW
Working video
Show automatic unloading instead of only describing it.
For industrial buyers, video is a trust shortcut. Put operation notes and CTA beside it.
Applications
Where This Separator Fits
Waste Recycling
Remove ferrous metals from mixed waste, C&D waste and shredded material lines.
Mining
Protect crushers and conveyors from tramp iron in ore handling processes.
Quarry & Aggregate
Separate metal contamination from stone, sand, gravel and aggregate production.
Cement & Coal
Support raw material handling, coal conveying and plant equipment protection.
Buyer questions
FAQ for Faster Decision-Making
Should I choose manual cleaning or self-cleaning?
Manual cleaning is suitable for low iron content. Self-cleaning is better for continuous lines or frequent iron contamination.
Can the separator be customized?
Yes. Magnetic strength, equipment size, installation method, color, logo and packaging can be coordinated.
What data should I send before quotation?
Please provide material type, conveyor width, belt speed, material layer depth, iron size, installation height, photos or drawings if available.
Recommended Products
Other magnetic separation options buyers often compare
Continue comparing suitable equipment before sending your conveyor width, material type and installation height for model selection.
Metal Recycling

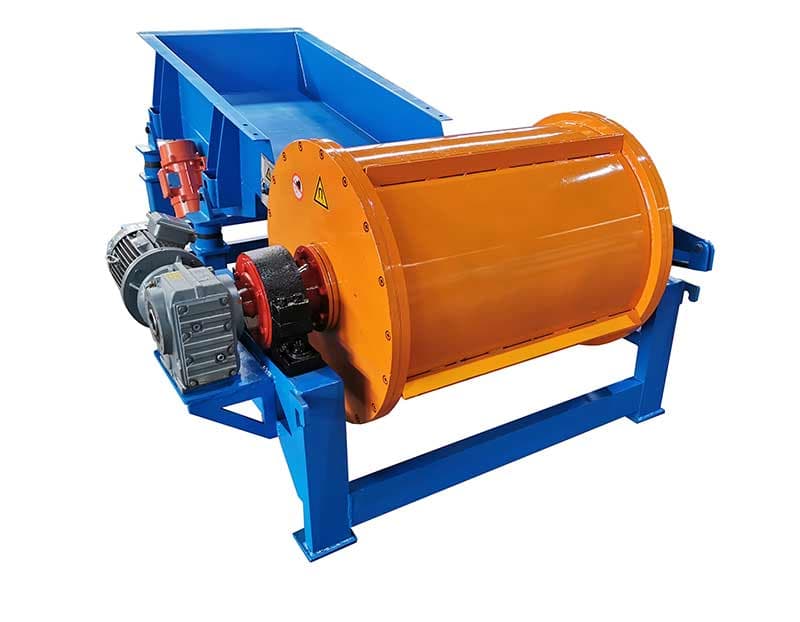

Drum Magnet
CHNMAG Drum Magnet is a separation machine designed for the continuous extraction of ferrous metal contamination from dry bulk material. Material is fed uniformly to the drum magnet from a conveyor, vibration feeder or chute, ensuring continuous metal
View related product
Mining Industry

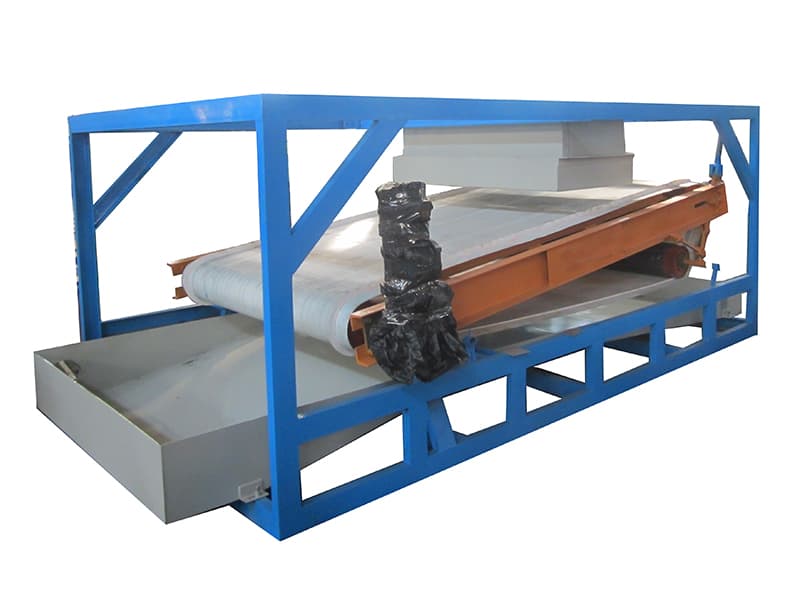

Belt High Gradient Magnetic Separator
Belt High Gradient Magnetic Separator is a high performance magnetic separation equipment designed for small size ore(size less than 2mm) processing and magnetic material separating from mineral.
View related product
Metal detection and separation equipment for the food, pharmaceutical, and chemical industries

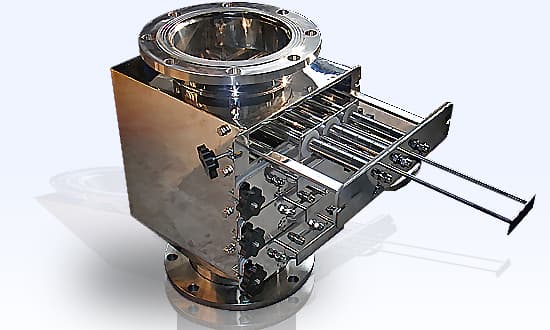

CBS drawer type magnetic filter
